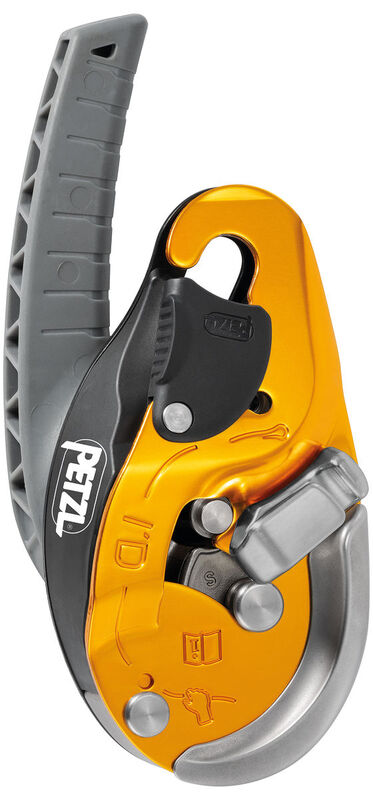

I’D® EVAC
Self-braking descender with anti-panic function for lowering from an anchor
The I’D EVAC self-braking descender is primarily designed for lowering from an anchor. The ergonomic handle is specifically oriented for managing a load from the anchor and offers comfortable descent control. The integrated anti-panic function and anti-error catch reduce the risk of an accident due to user error. The AUTO-LOCK system allows the rope to be automatically locked without having to manipulate the handle or tie off the device. Once locked, the rope can be taken up without having to manipulate the handle. The safety gate allows the rope to be installed with the device remaining connected to the anchor. I’D EVAC is compatible with 10 to 11.5 mm ropes.
Reference: D020CA00
Features

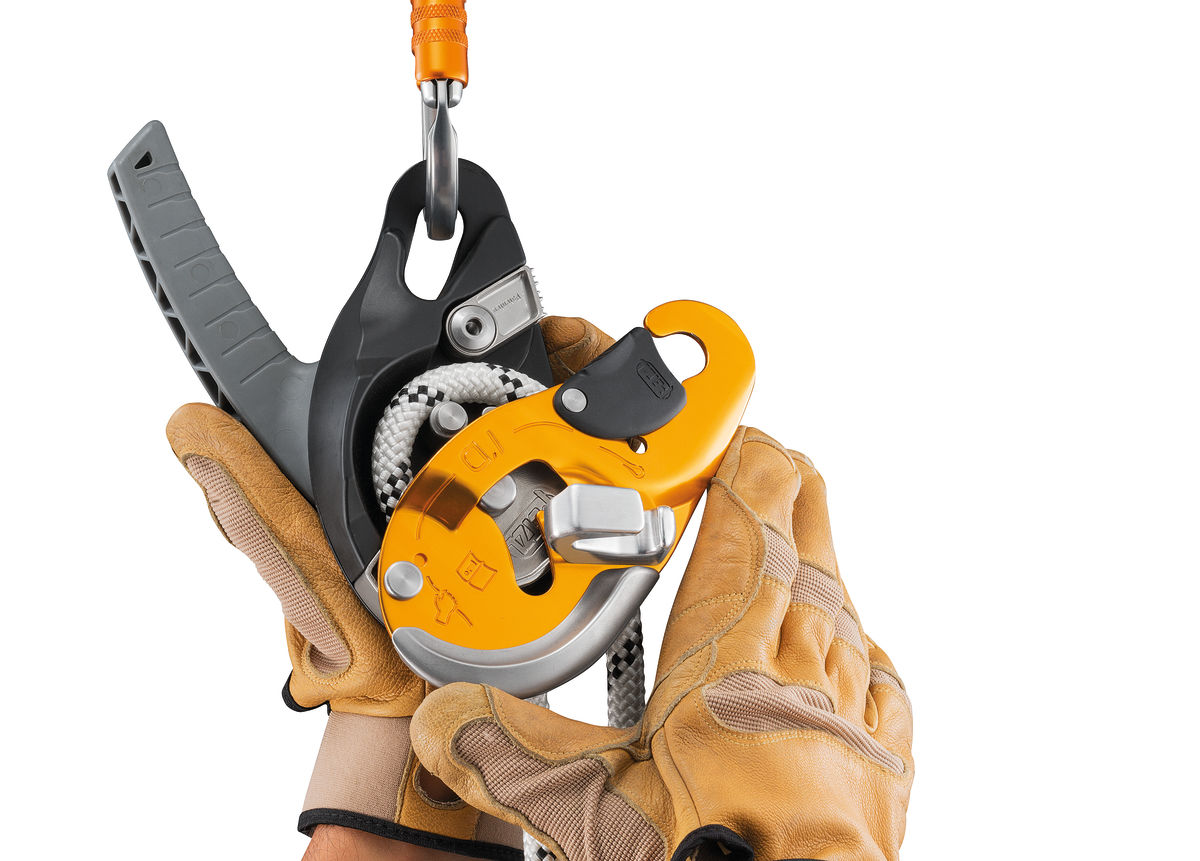

Installing the rope
The descender has a safety gate on the moving side plate that allows the user to easily install the rope while the device remains connected to the anchor.

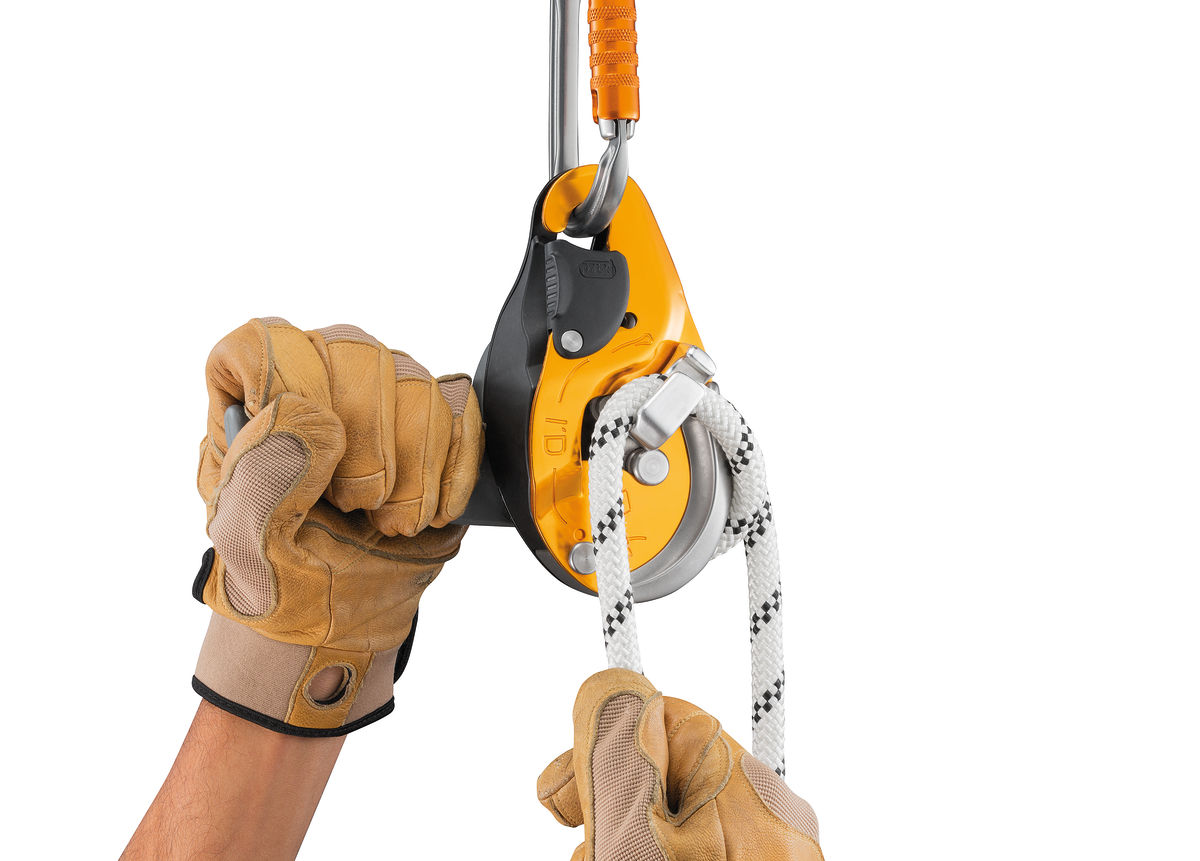

Ergonomic handle
The ergonomic handle allows the user to unblock the rope and comfortably control the descent.

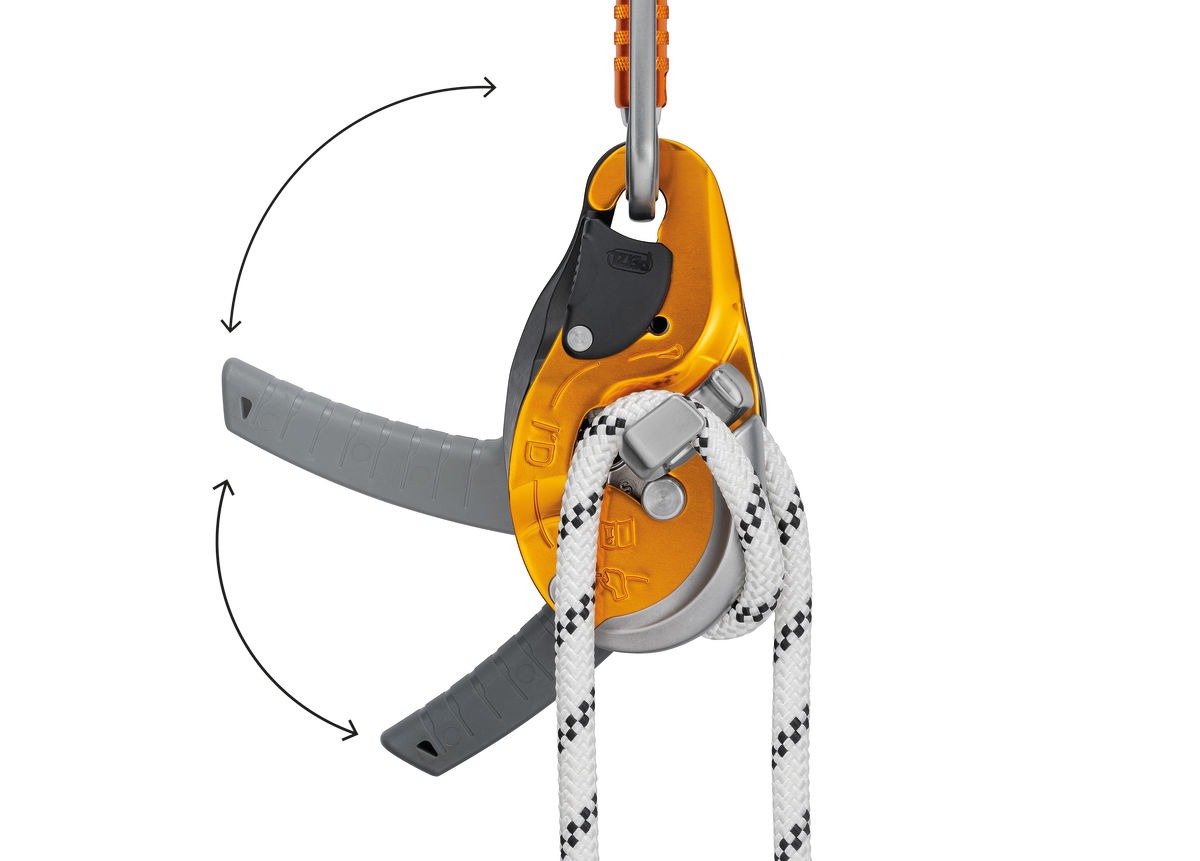

Anti-panic function
The anti-panic function automatically stops the descent if the user pulls too hard on the handle.
AUTO-LOCK system
The AUTO-LOCK system allows the rope to be automatically locked without having to manipulate the handle or tie off the device.
Product Video(s)
I’D EVAC
- Designed for lowering from an anchor
- Easy to use:
- Safety gate on the moving side plate allows the user to easily install the rope while the device remains connected to the anchor
- Markings and rope guide makes it easy to install the rope
- Anti-error catch helps reduce the risk of an accident due to incorrect installation of the device on the rope
- Ergonomic handle allows the rope to be released and enables comfortable control of the descent; Two possible descent modes: on the side plate or in the V-shaped friction channel. The handle is specifically oriented for managing a load from the anchor
- Anti-panic function automatically stops the descent if the user pulls too hard on the handle
- AUTO-LOCK system allows the rope to be automatically locked without having to manipulate the handle or tie off the device; the automatic return system on the handle limits the risk of the device getting accidentally snagged
- Handle automatically switches to storage position when the rope is removed from the device, reducing the risk of accidental snagging when the descender is carried on the harness
- Versatile:
- Once locked, the rope can be taken up without having to manipulate the handle, for making a reversible haul system
- The moving side-plate can be locked shut with a screw, allowing the I’D EVAC to be integrated into evacuation kits
- Open auxiliary brake allows the user to increase the friction in accordance with the weight of the load and the rope diameter, and to install or release a rope at any time
- The stainless steel wear plate improves durability by reinforcing the rope friction zone
- Lowering load: Up to 140 kg for one person, and up to 250 kg when used for rescue
- Rope compatibility: 10 to 11.5 mm diameter
- Available in two colors: yellow and black
- Material(s)
- Aluminum, steel, nylon
- Weight
- 615 g
- Working load limit for one person: 140 kg (more information in the Instructions for Use and technical tips at www.petzl.com)
- Working load limit for two people (rescue): 250 kg (more information in the Instructions for Use and technical tips at www.petzl.com)
- Certification(s): EN 341 type 2 class A, CE EN 12841 type C, ANSI Z459.1, ANSI Z359.9/3, NFPA 2500 Technical Use, EAC, GB/T 38230: II A, XF 494: FZL-X-Q10/11.5
| SKUs | D020CA00current product | D020CA01 |
|---|---|---|
| Color(s) | Yellow | Black |
| Rope compatibility | 10 to 11.5 mm | 10 to 11.5 mm |
| Made in | FR | FR |
| Guarantee | 3 years | 3 years |
| Inner Pack Count | 1 | 1 |
| Quantity Per Box | 4 | 4 |
| EAN | 3342540826670 | 3342540826656 |
For your safety, it is essential that you read and strictly follow the Instructions for Use and all Petzl technical information. If you have any questions or concerns, please contact us.
Instructions for Use
Declaration of Conformity
