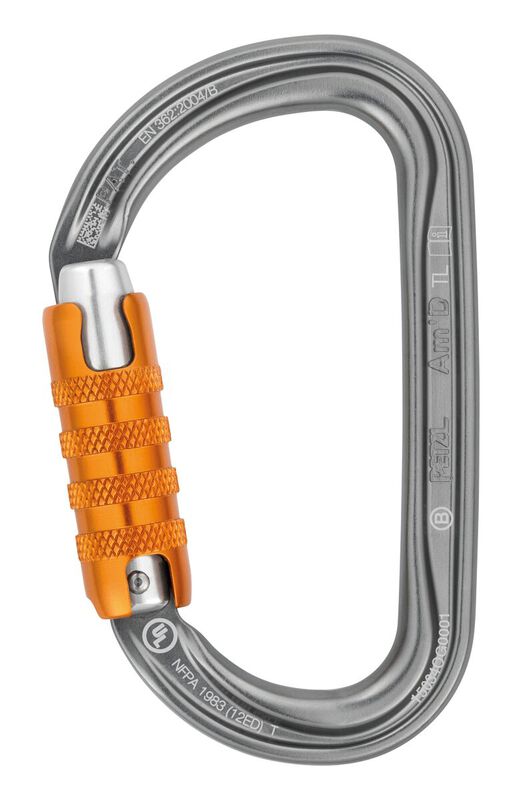

Am’D
Lightweight asymmetrical carabiner
The Am’D lightweight asymmetrical carabiner is made of aluminum. It has a D shape particularly suited for connection to diverse equipment such as descenders or positioning lanyards. Its fluid interior design and Keylock system facilitate handling. The Am’D carabiner is available in three locking systems: automatic TRIACT-LOCK or BALL-LOCK system, or the manual SCREW-LOCK system. Am'D may be used with a CAPTIV positioning bar to favor loading of the carabiner along the major axis, to limit the risk of it flipping and to keep it integrated with the device.
Reference: M34A TL
Features
For connection to equipment such as descenders or positioning lanyards

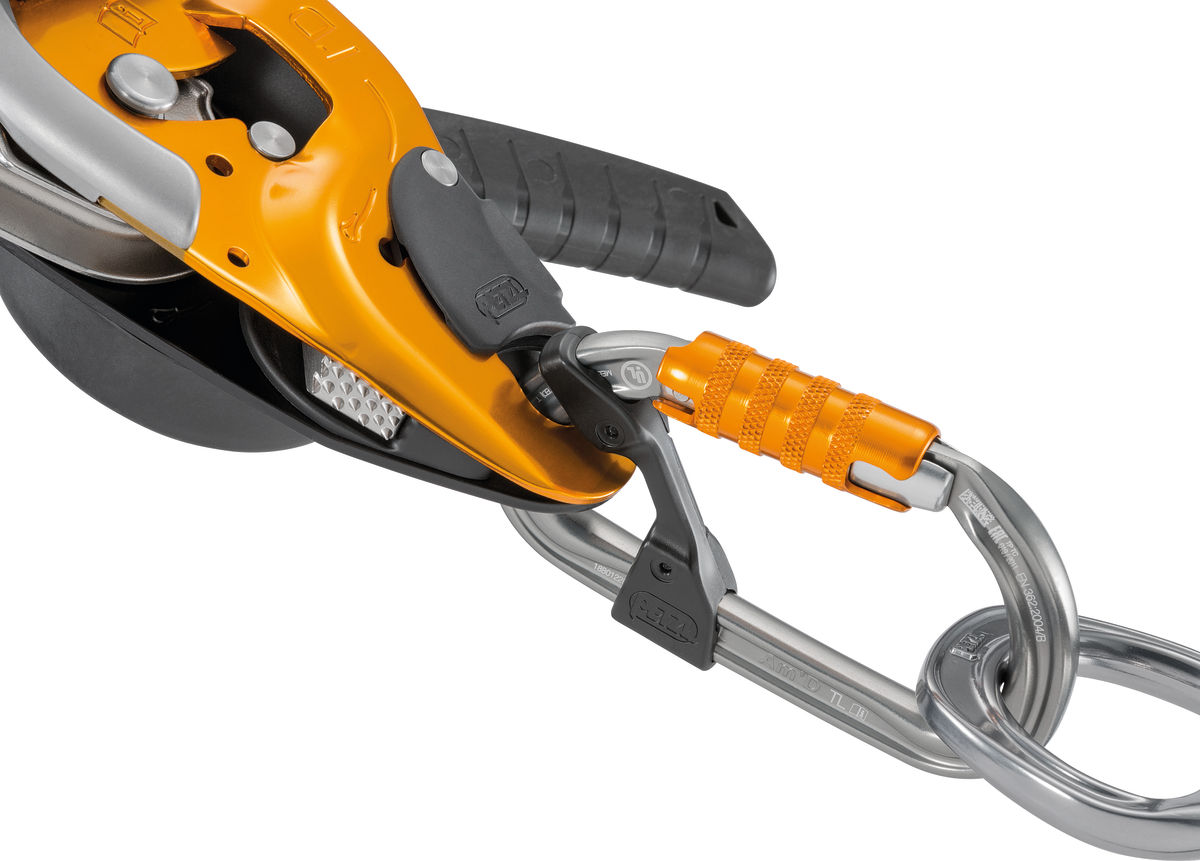

The Am'D carabiner has an asymmetrical D shape that is ideal for attaching equipment such as descenders or positioning lanyards. Use of the CAPTIV positioning bar favors loading of the carabiner along the major axis, limits its flipping and keeps it attached to the device or lanyard.
Fluid interior design

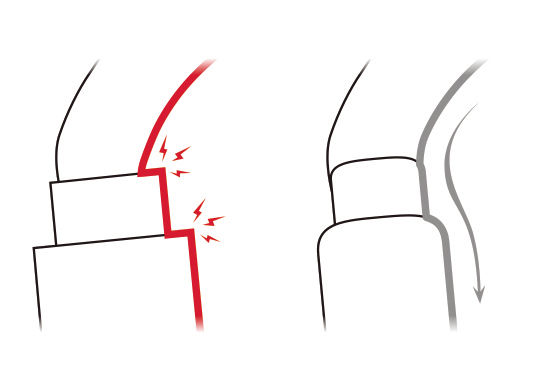

Fluid interior design of Am'D carabiners limits the risk of having a catch point and facilitates rotation of the carabiner.
H-shaped cross-section
The Am'D has an H cross-section that ensures an optimal strength/weight ratio and protects the markings from abrasion.
Locking indicator
To facilitate equipment checks, SCREW-LOCK manual locking carabiners have a red band that is visible only when the carabiner is not locked.
- D shape is particularly suited for connection to equipment such as descenders or positioning lanyards
- Aluminum carabiner is light, reducing the weight of equipment the worker at height needs to carry
- May be used with a CAPTIV positioning bar to favor loading of the carabiner along the major axis, to limit the risk of it flipping and to keep it integrated with the device
- Easier handling:
- fluid interior design limits the risk of having a catch point and facilitates rotation of the carabiner
- Keylock system to avoid any involuntary snagging of the carabiner
- H-shaped cross-section:
- ensures an improved strength-to-weight ratio
- protects markings from abrasion
- Available in three different locking systems:
- TRIACT-LOCK: automatic locking with triple-action gate opening
- BALL-LOCK: automatic locking with triple-action gate opening, with lock indicator
- SCREW-LOCK: the manual screw-lock with red band provides a visual warning when the carabiner is unlocked
- Also available in black (TRIACT-LOCK and SCREW-LOCK versions) and gold (TRIACT-LOCK and BALL-LOCK versions)
- Material(s)
- aluminum
- Certification(s)
- CE EN 362, 12275 type B, EAC, NFPA 2500 Technical Use, XF 494 : FZL-G-Q, GB/T 23469 / B, conforme à la réglementation japonaise de protection contre les chutes
| SKUs | M34A TLcurrent product | M34A TLN | M34A TLY | M34A SL | M34A SLN | M34A BL | M34A BLY |
|---|---|---|---|---|---|---|---|
| Weight | 75 g | 75 g | 75 g | 70 g | 70 g | 75 g | 75 g |
| Locking system | TRIACT-LOCK | TRIACT-LOCK | TRIACT-LOCK | SCREW-LOCK | SCREW-LOCK | BALL-LOCK | BALL-LOCK |
| Color(s) | Gray | Black | Gold | Gray | Black | Gray | Gold |
| Major axis strength | 27 kN | 27 kN | 27 kN | 27 kN | 27 kN | 27 kN | 27 kN |
| Minor axis strength | 8 kN | 8 kN | 8 kN | 8 kN | 8 kN | 8 kN | 8 kN |
| Open gate strength | 7 kN | 7 kN | 7 kN | 7 kN | 7 kN | 7 kN | 7 kN |
| Gate opening | 24 mm | 24 mm | 24 mm | 25 mm | 25 mm | 25 mm | 25 mm |
| Made in | FR | FR | FR | FR | FR | FR | FR |
| Guarantee | 3 years | 3 years | 3 years | 3 years | 3 years | 3 years | 3 years |
| Inner Pack Count | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Quantity Per Box | 20 | 20 | 20 | 20 | 20 | 20 | 20 |
| EAN | 3342540102453 | 3342540102446 | 3342540102439 | 3342540102477 | 3342540102460 | 3342540102422 | 3342540102415 |
For your safety, it is essential that you read and strictly follow the Instructions for Use and all Petzl technical information. If you have any questions or concerns, please contact us.
Instructions for Use
Declaration of Conformity
- UE-Declaration-M34Ax BLy-AM'D BALL LOCK.pdf - 0.23 MB
- UE-Declaration-M34Ax SLy-AM'D SCREW LOCK.pdf - 0.23 MB
- UE-Declaration-M34Ax TLy-AM'D TRIACT LOCK.pdf - 0.23 MB
- UE-Packaging Declaration-M34A BLx-AM'D BALL-LOCK.pdf - 1.32 MB
- UE-Packaging Declaration-M34A SLx-AM'D SCREW-LOCK.pdf - 1.32 MB
- UE-Packaging Declaration-M34A TLx-AM'D TRIACT-LOCK.pdf - 1.32 MB
Easily manage and inspect your PPE
- Add a Petzl product by simply scanning its datamatrix: all information related to the product will automatically populate
- Easily import and export your existing PPE data
- View product history from the date of manufacture
