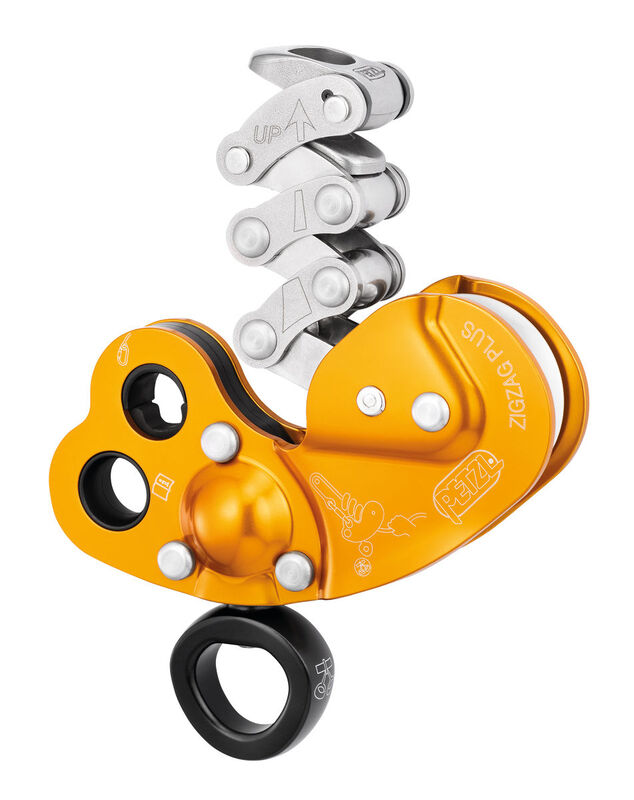

ZIGZAG® PLUS
Mechanical Prusik with high-efficiency swivel, for tree care

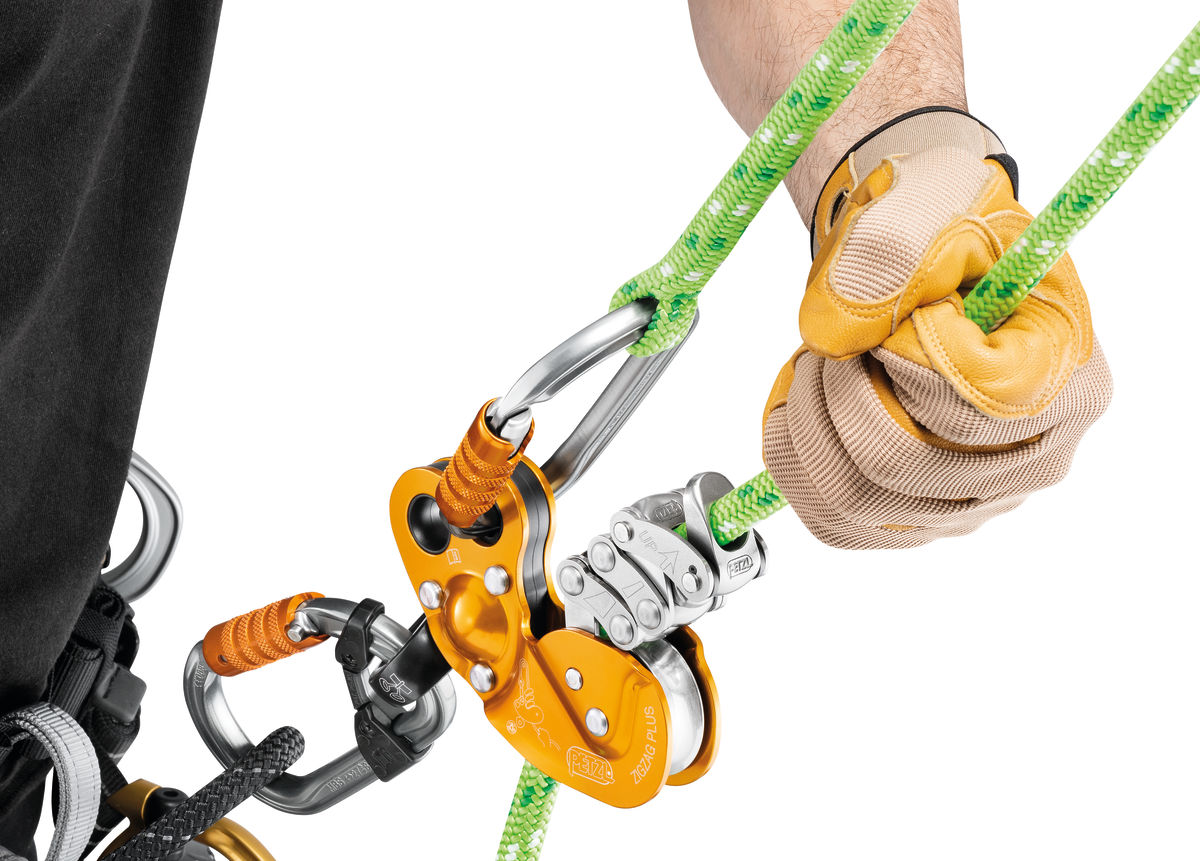

The ZIGZAG PLUS mechanical Prusik allows the user to move around efficiently in a tree using classic Prusik pulley system technique. The friction chain provides precision and fluidity when moving around. The pulley is mounted on sealed ball bearings to allow the slack to be taken up easily. Can be used on either doubled ropes or a single rope, providing great versatility. The lower attachment hole with high-efficiency swivel ensures stable and correct positioning of the mechanical Prusik and optimal rope glide through the device.
Reference: D022BA00
Features
Release lever
Rope feed is smooth and precise thanks to the release lever, allowing the user great control over his/her movements. Adjusting the pressure on this lever controls the speed of movement.
Attachment hole with high-efficiency swivel
The lower attachment hole with high-efficiency swivel ensures stable and correct positioning of the mechanical Prusik and optimal rope glide through the device.

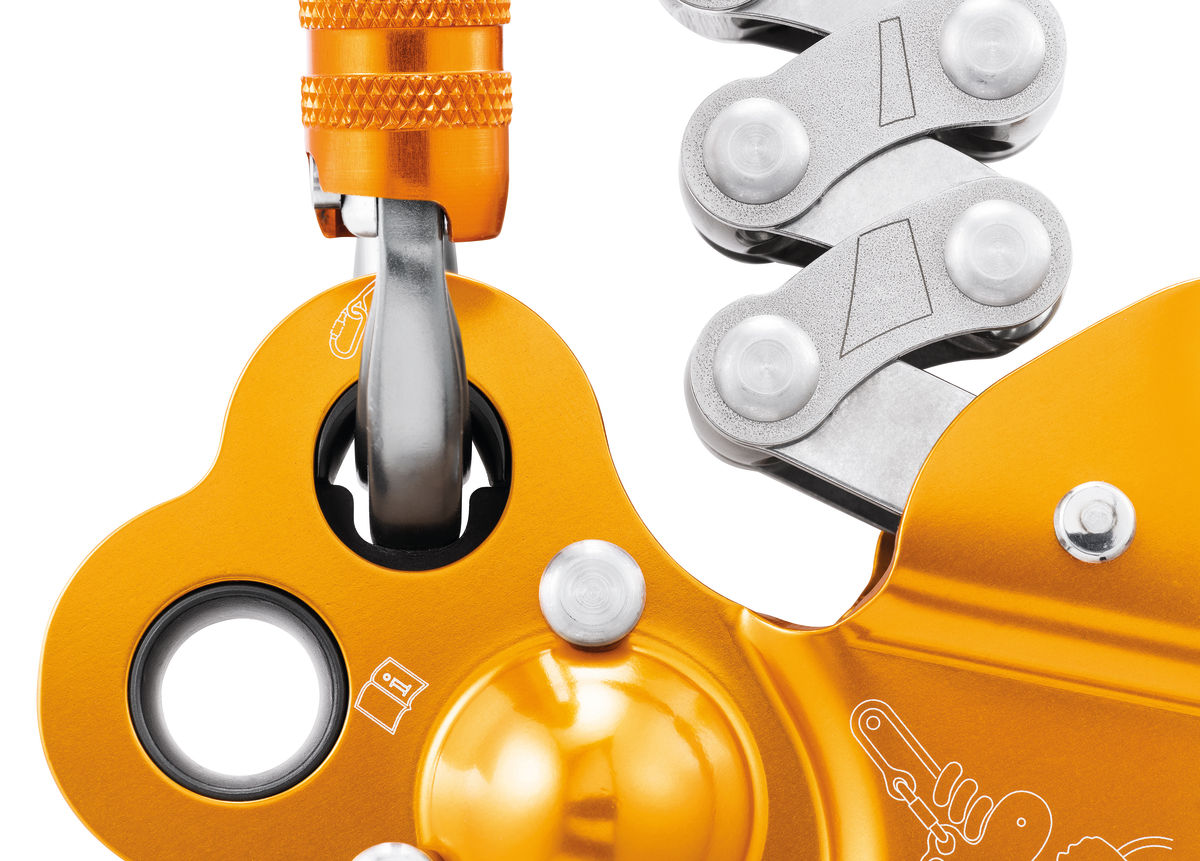

Upper attachment hole
Upper attachment hole has a flexible positioning ring that helps keep the connector oriented along its major axis.
Versatile
The ZIGZAG PLUS mechanical Prusik is used on either doubled ropes or a single rope, thanks to the CHICANE accessory, which offers more friction on the descent, and the KNEE ASCENT assemblies, which facilitate the ascent.
Product Video(s)
ZIGZAG PLUS
- Intuitive to use:
- technique identical to classic Prusik pulley system
- the device locks automatically on the rope once the friction chain extends
- For efficient movement within the tree:
- rope feed is smooth and precise thanks to the release lever, allowing the user great control over his/her movements. Adjusting the pressure on this lever controls the speed of movement
- easy to take up slack, thanks to the pulley mounted on sealed ball bearings and the separated and curved side plates
- lower attachment hole with high-efficiency swivel ensures stable and correct positioning of the mechanical Prusik and optimal rope glide through the device
- Versatile:
- for use on either doubled ropes or a single rope, thanks to the CHICANE accessory, which offers more friction on the descent, and the KNEE ASCENT assemblies, which facilitate the ascent
- upper attachment hole for the rope end when using a doubled rope or for the CHICANE auxiliary braking device when using a single rope. It has a flexible positioning ring that helps keep the connector oriented along its major axis
- auxiliary attachment hole for adding a ZILLON lanyard or connecting a second system
- Durability:
- steel construction for improved durability
- separated and curved side plates for better wear resistance
- Rope compatibility: 11.5 to 13 mm diameter
- ZIGZAG PLUS allows the user to work in compliance with the ANSI Z133 standard
- Material(s)
- aluminum, steel, nylon
- Weight
- 425 g
- Rope compatibility
- EN 1891 type A low stretch kernmantel ropes
- Working load limit: 140 kg
- Certification(s)
- CE
| SKUs | D022BA00current product |
|---|---|
| Color(s) | yellow |
| Rope compatibility | 11.5 to 13 mm |
| Made in | FR |
| Guarantee | 3 years |
| Inner Pack Count | 1 |
| Quantity Per Box | 10 |
| EAN | 3342540826557 |
For your safety, it is essential that you read and strictly follow the Instructions for Use and all Petzl technical information. If you have any questions or concerns, please contact us.
Instructions for Use
Declaration of Conformity
Easily manage and inspect your PPE
- Add a Petzl product by simply scanning its datamatrix: all information related to the product will automatically populate
- Easily import and export your existing PPE data
- View product history from the date of manufacture
Related Tech Tips
Explore technical tips for this product.
Petzl ZIGZAG PLUS FAQ

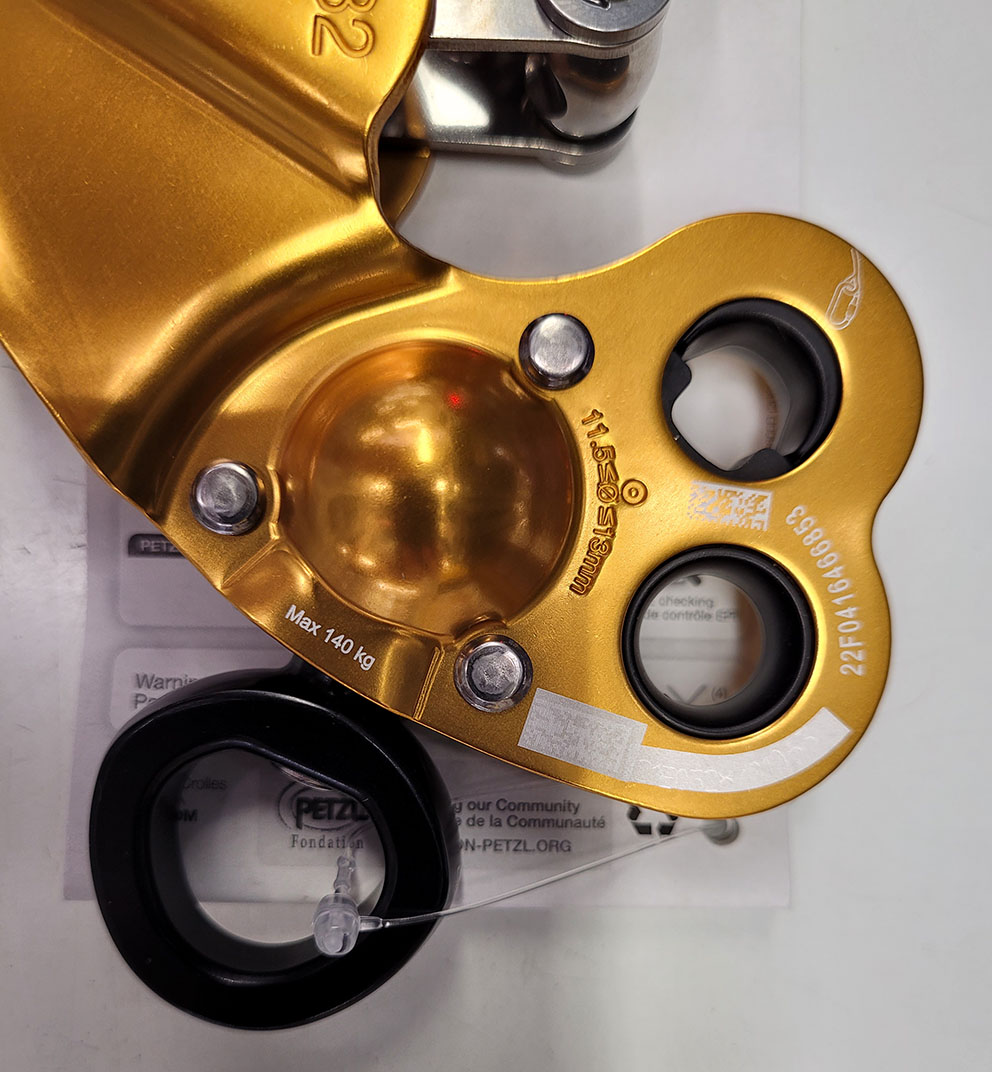

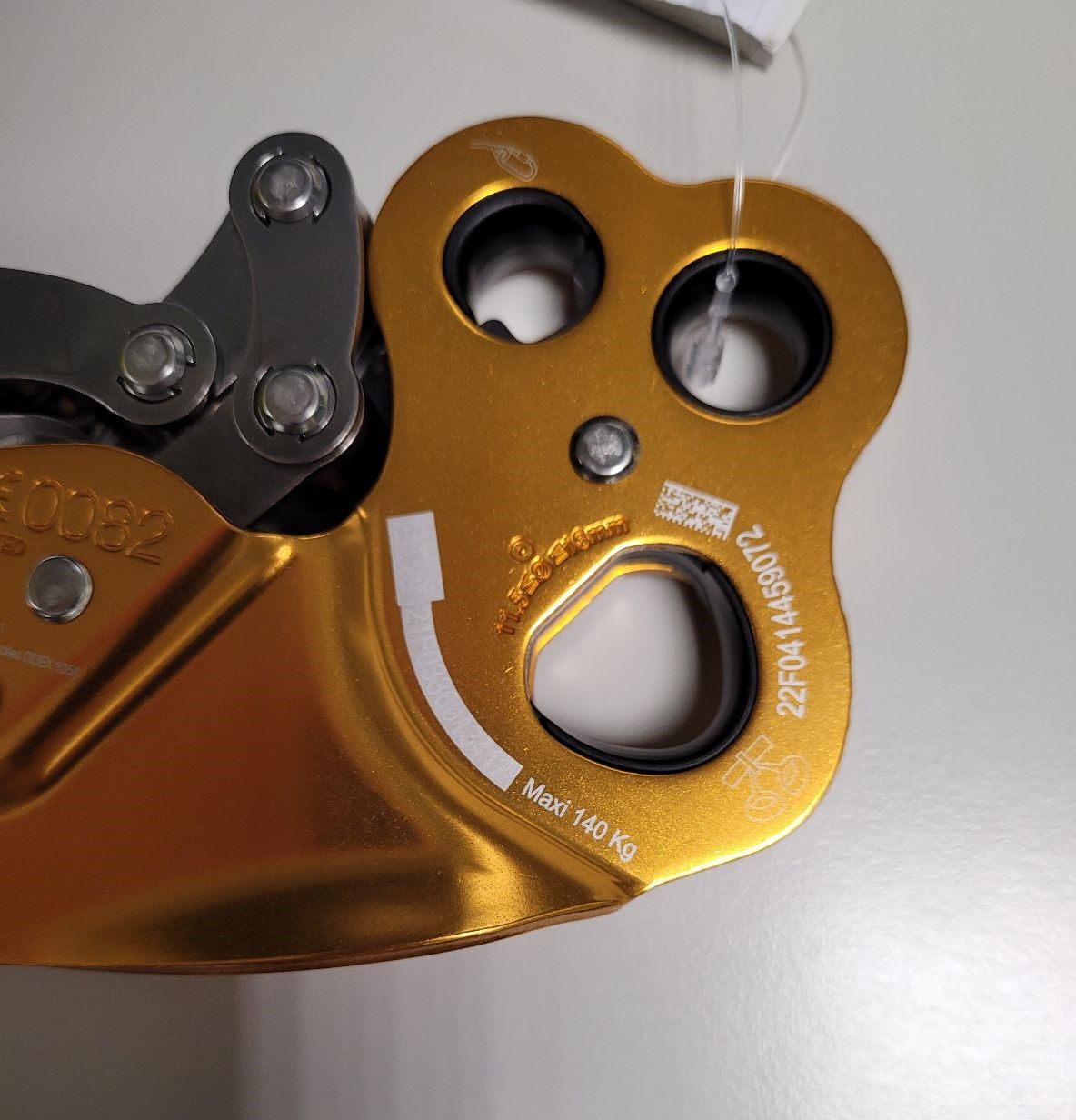

Your product has a revised serial number and datamatrix as in the photos below:
This product comes from a series of new products reassembled in our factories: the in-stock products affected by the August 2021 safety alert on slippage were collected and reassembled with the new release levers. To maintain the traceability of these products, we have updated their individual number and datamatrix.
These products underwent a quality control that is 100% identical to our production standard.

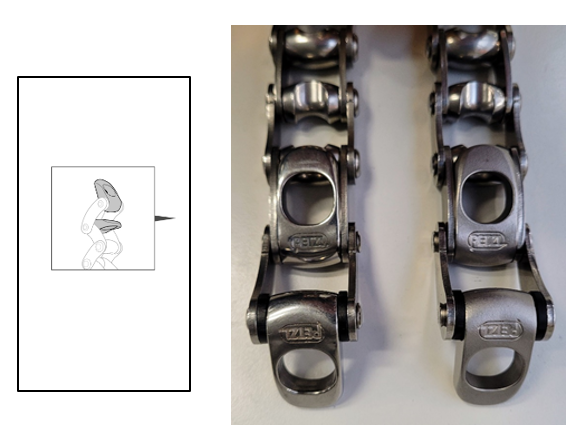

Release levers before update / after update
