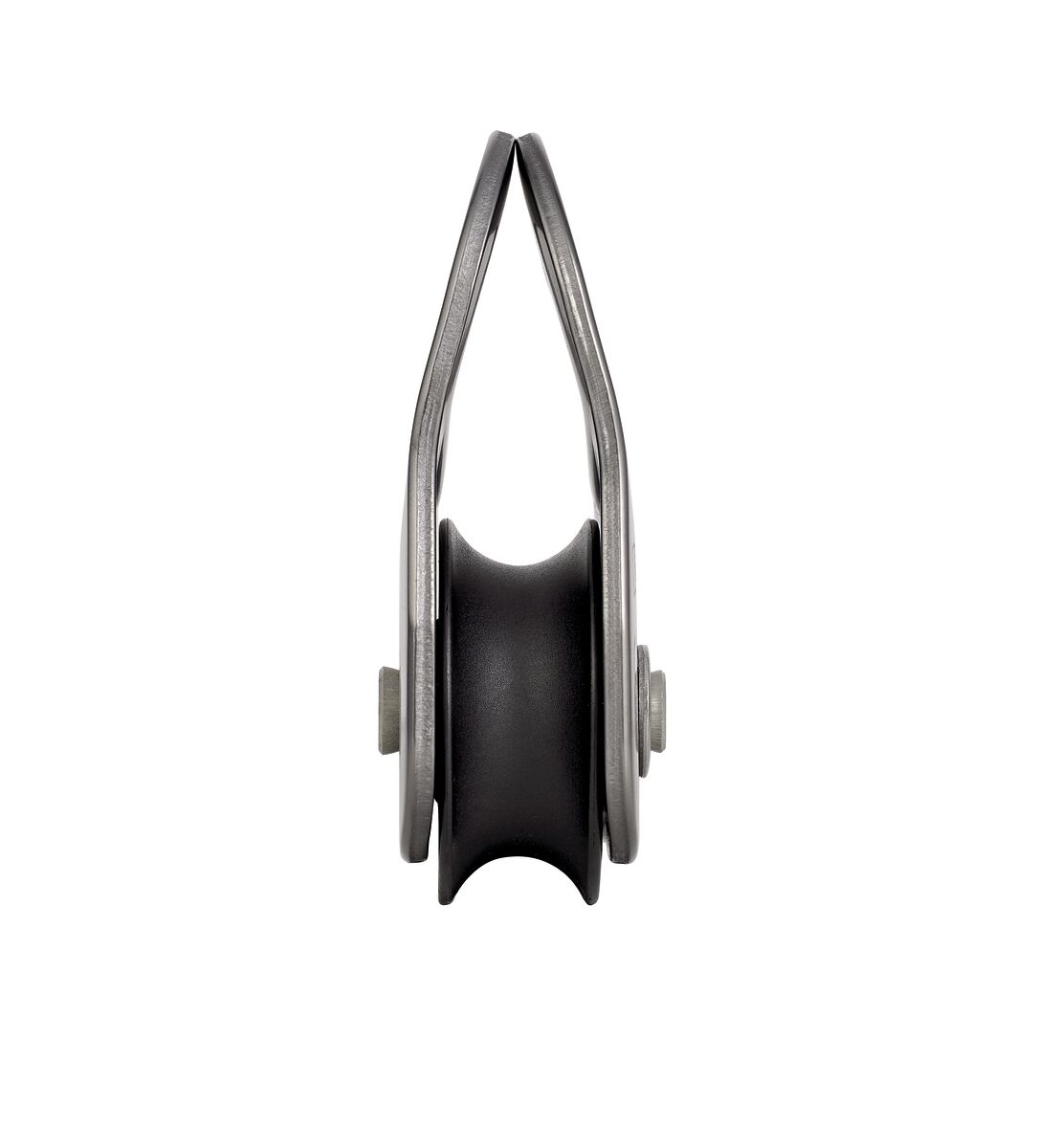

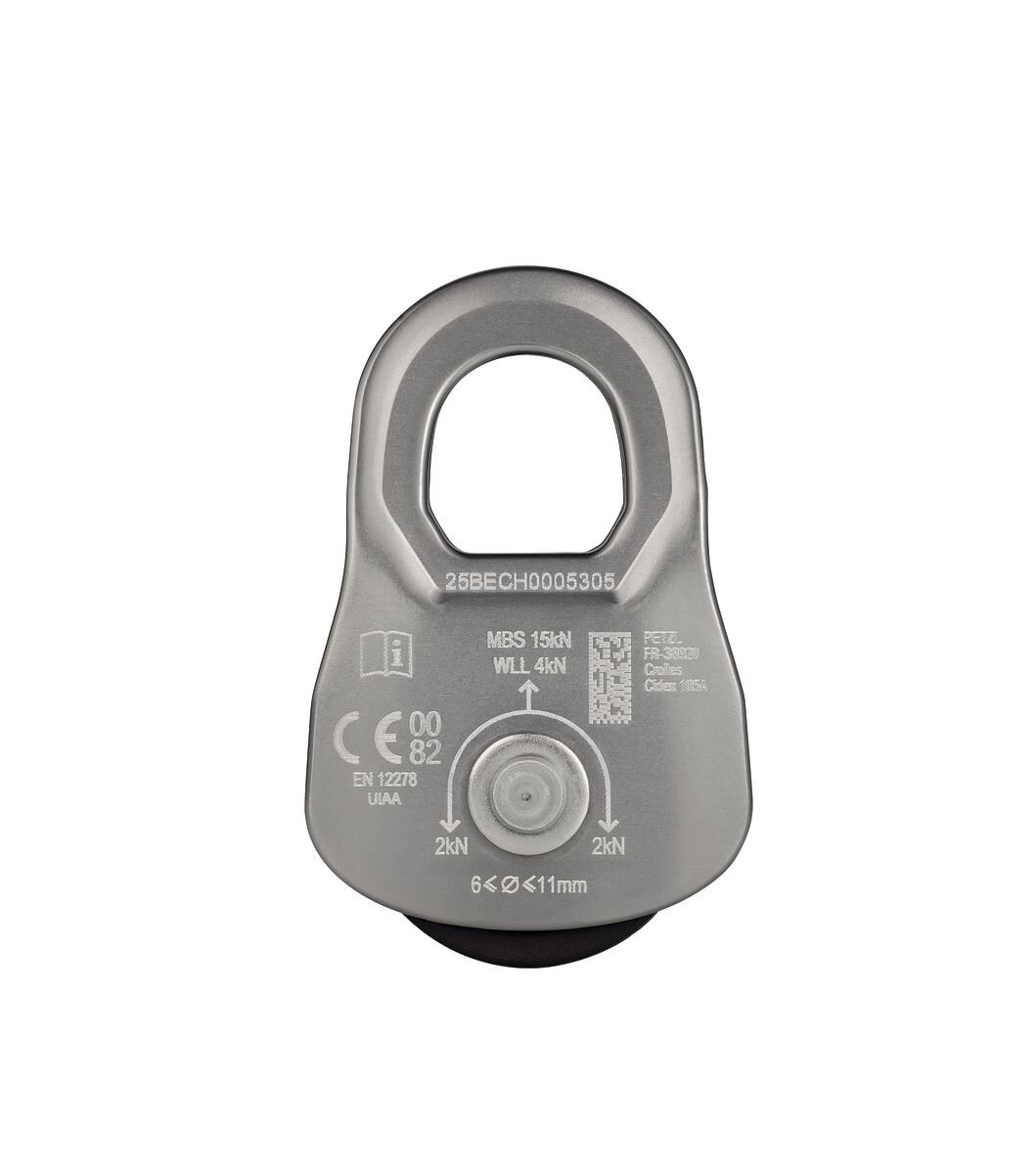

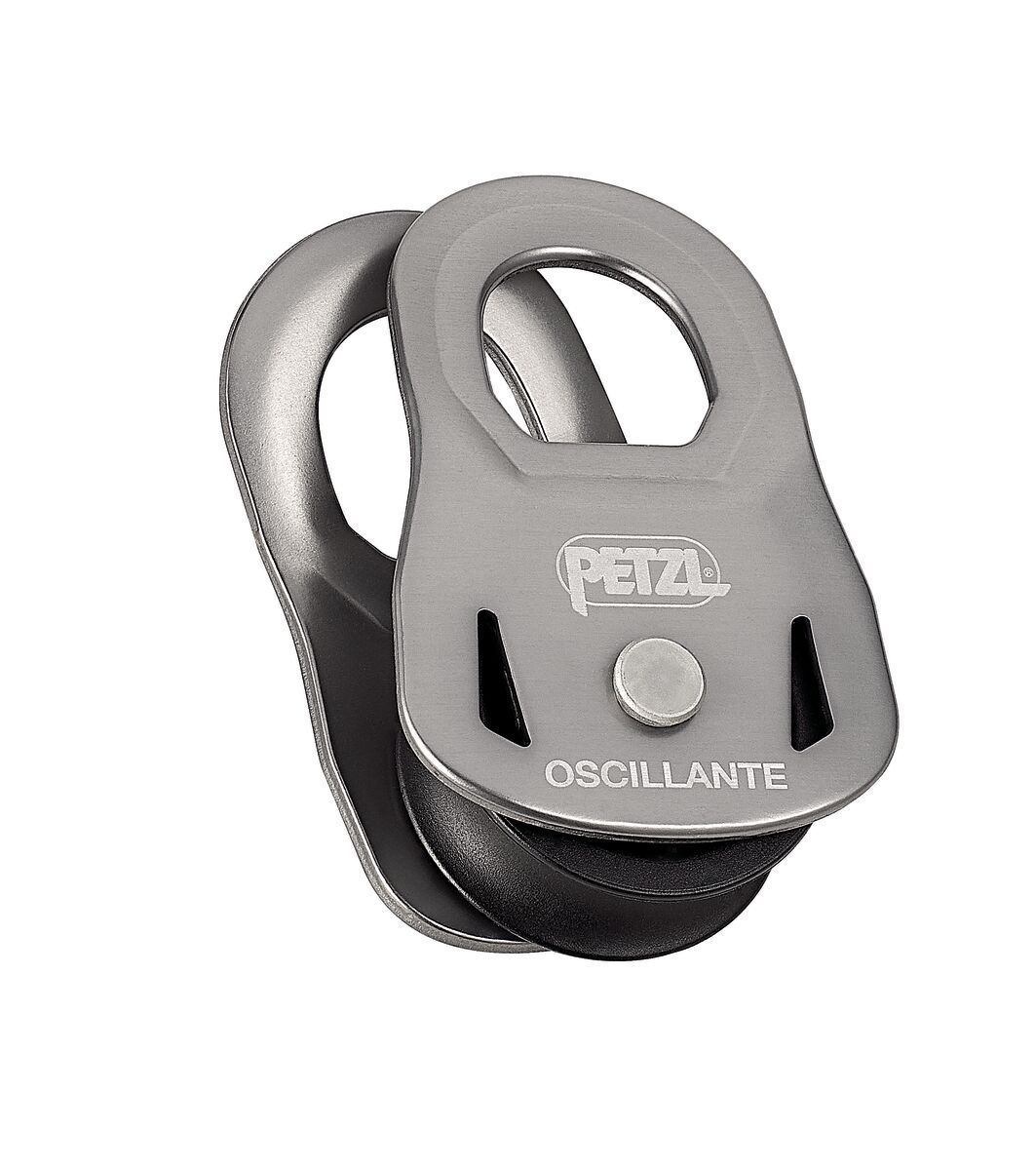

OSCILLANTE
Emergency pulley with moving side plates
Lightweight and compact, the OSCILLANTE pulley can be used in crevasse rescue systems or improvised haul systems. Swinging side plates allow for easy setup.
Detailed description
Description
- Swinging side plates allow the pulley to be quickly installed
- Recycled nylon sheave and aluminum side plates for excellent strength to weight ratio
- Wide attachment point allows most locking carabiners to rotate
Specifications
- Material(s): Aluminum, recycled nylon
- Certification(s): CE EN 12278, UIAA
References
| References | P020AA00 |
|---|---|
| Weight | 38 g |
| Min. rope diameter | 6 mm |
| Max. rope diameter | 11 mm |
| Sheave type | Self-lubricating bushings |
| Sheave diameter | 25 mm |
| Efficiency | 71 % |
| Working load | 4 kN |
| Working load | On one rope strand: 2 kN |
| Breaking strength | 15 kN |
| Guarantee | 3 years |
| Inner Pack Count | 1 |
