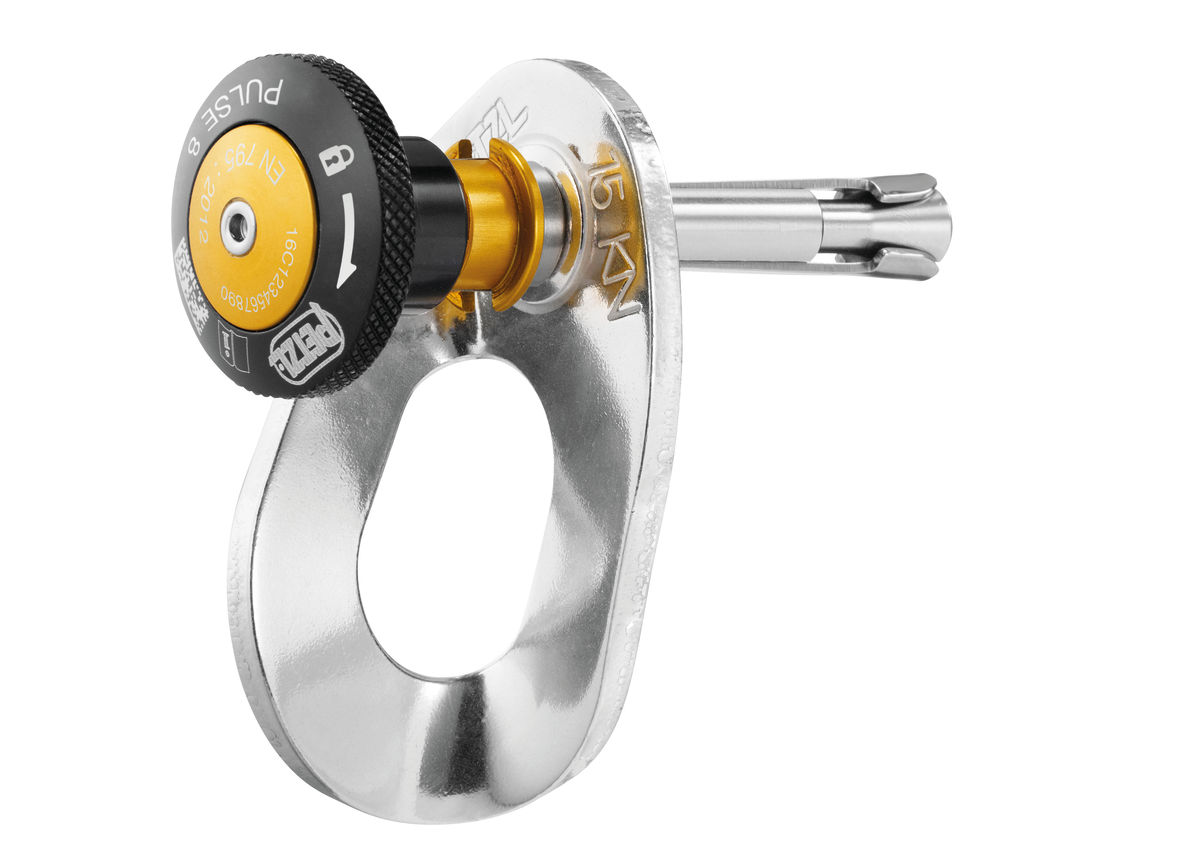

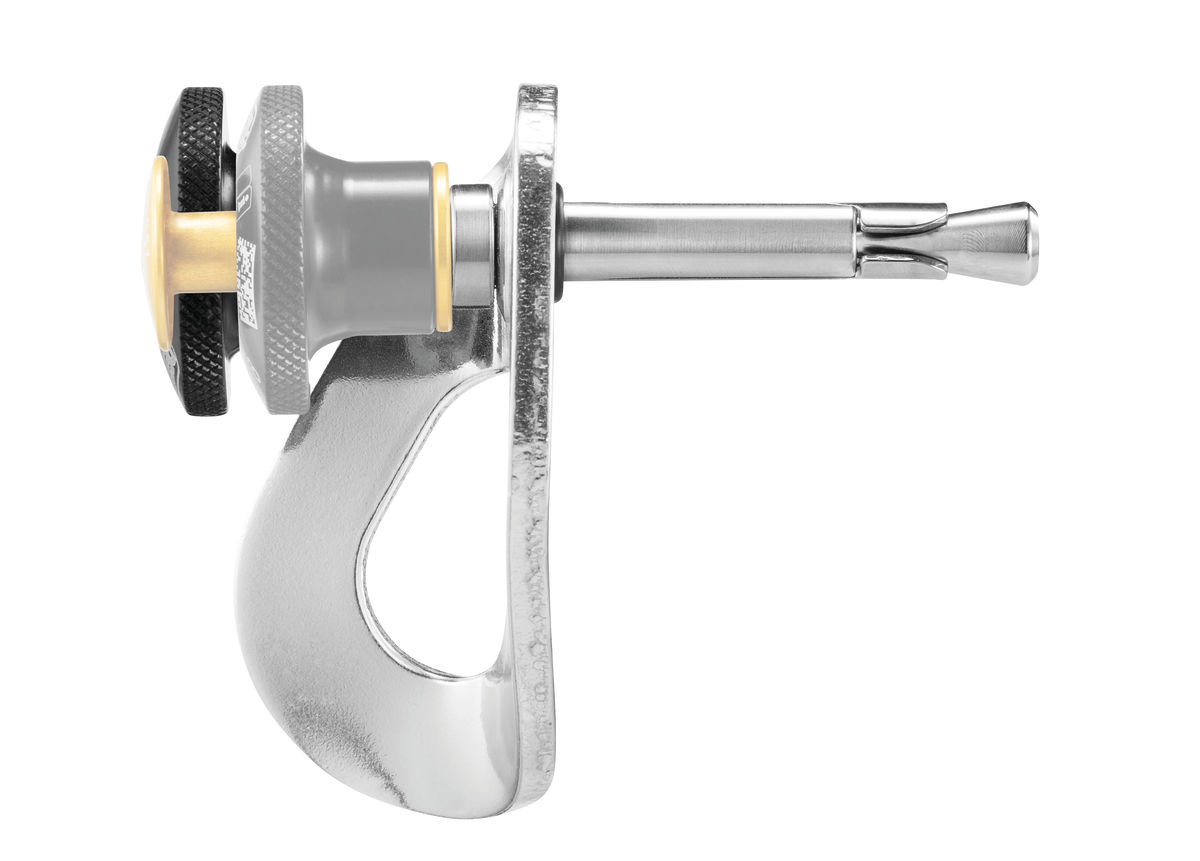

PULSE
Temporary 8 mm anchor for caving
Temporary 8 mm anchor, composed of an aluminum hanger and a stainless steel shaft, designed for caving suspension and equipment. Quick to place or remove, PULSE allows for a more comfortable and safe practice.
Detailed description
Description
- Quick to use:

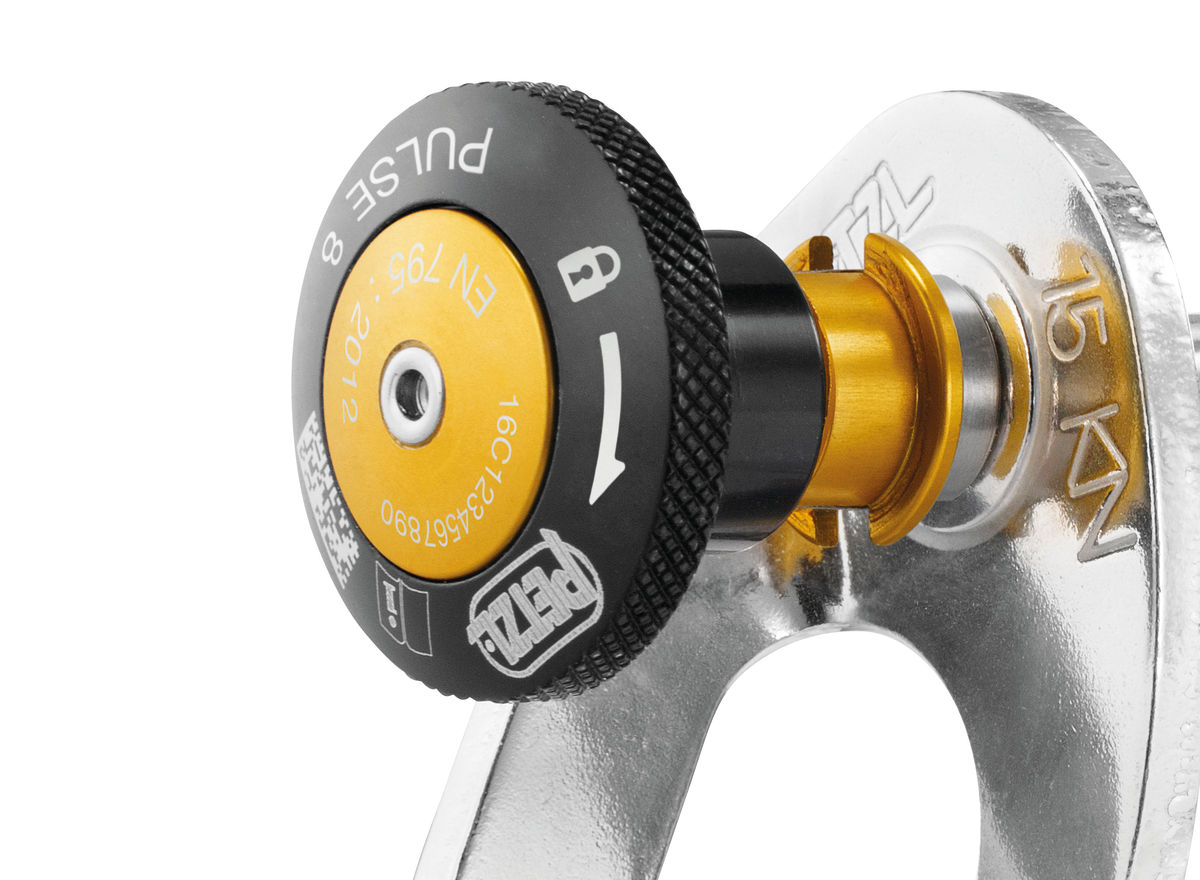

- instantly placed by activating the release plunger
- anchor is completely removed by pressing on the release plunger and pulling on the hanger
- Comfort:
- easy to install and remove
- locking wrench for extended use or use with groups
- twisted hanger designed to hold the connector parallel to the wall
- interchangeable hanger
- More responsible equipment practice for caving:
- the anchor dœs not rust underground
- the condition of the anchor is checked
Specifications
- Material(s): stainless steel, aluminum
- Certification(s): CE EN 795 B, UKCA
References
| References | P37S 8 |
|---|---|
| Diameter | 8 mm |
| Weight | 45 g |
| Drilling depth | 5,0 cm |
| Drilling diameter | 8 mm |
| Shear strength in 50 MPa concrete | 15 kN |
| Pull-out strength in concrete 50 MPa | 12 kN |
| Guarantee | 3 years |
| Inner Pack Count | 1 |
